SOA 12c – EDN –Using AQ JMS

Published December 31, 2014 EDN 10 Comments
Tags: 12c, AQJMS, EDN, SOA

In this post, We will see how to use AQJMS with EDN in SOA Suite 12c (Weblogic JMS is the default mechanism).

Navigate to Weblogic Domain –> <<your domain>> –> System MBean Browser –> oracle.as.soainfra.config –> <<SOA server>> –> EDNConfig-> edn. Modify JMS type to AQJMS as shown below.

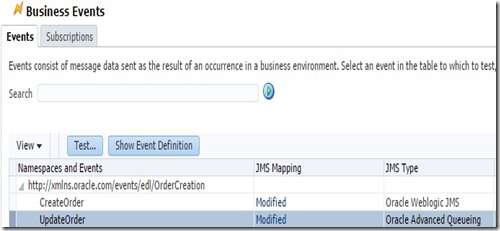

This change will reflect in Business Events screen as shown below. You can observe JMS Type is shown as Oracle Advanced Queueing for UpdateOrder business event.

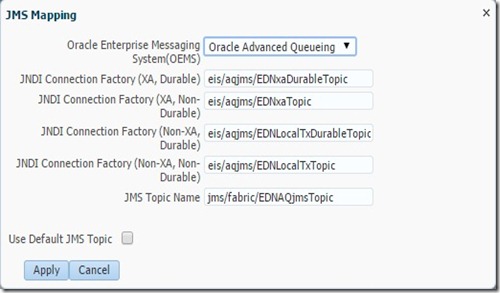

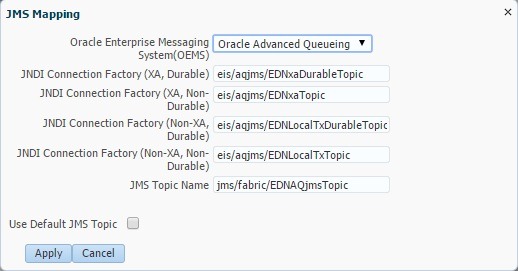

Clicking on JMS Mapping shows the default Connection Factories and Topic used. You can observe that JMS mapping is changed to use respective AQ resources.

After this change, restart the affected composites and publish Update Order business event to verify the generated log. Below, you can clearly observe that AQ Connection factory EDNxaTopic and AQ Topic EDNAQjmsTopic has been used. This log is generated when Update Order event consistency level is set to OneandOnlyOne and Durable property set to No.

[2014-12-27T21:35:49.171+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ‘5’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 368b87b8-a4fd-407a-855e-5e3d83be4c13-00000a99,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 40010] [oracle.soa.tracking.InstanceId: 40024] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KeCVlz^3z0WjLxyGOA1KbOd000000A] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/aqjms/EDNxaTopic EdnBus12c file://wsdl/eis/aqjms/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/aqjms/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Starting JCA LocalTransaction
[2014-12-27T21:35:49.171+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ‘5’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 368b87b8-a4fd-407a-855e-5e3d83be4c13-00000a99,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 40010] [oracle.soa.tracking.InstanceId: 40024] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KeCVlz^3z0WjLxyGOA1KbOd000000A] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/aqjms/EDNxaTopic EdnBus12c file://wsdl/eis/aqjms/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/aqjms/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Invoking JCA Outbound Interaction
[2014-12-27T21:35:49.184+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.adapter.jms.outbound] [tid: [ACTIVE].ExecuteThread: ‘5’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 368b87b8-a4fd-407a-855e-5e3d83be4c13-00000a99,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 40010] [oracle.soa.tracking.InstanceId: 40024] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KeCVlz^3z0WjLxyGOA1KbOd000000A] JMSMessageProducer_produce: Successfully produced message with ID ID:AE8CF801AB594F6AA535BE5FB2654FC8 to destination jms/fabric/EDNAQjmsTopic
[2014-12-27T21:35:49.185+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ‘5’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 368b87b8-a4fd-407a-855e-5e3d83be4c13-00000a99,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 40010] [oracle.soa.tracking.InstanceId: 40024] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KeCVlz^3z0WjLxyGOA1KbOd000000A] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/aqjms/EDNxaTopic EdnBus12c file://wsdl/eis/aqjms/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/aqjms/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Committing JCA LocalTransaction.

Resources used by AQJMS for EDN

Consistency Level	Durable	Connection Factory (JNDI)	AQ Topic (JNDI)
OneandOnlyOne	Yes	eis/aqjms/EDNxaDurableTopic	jms/fabric/EDNAQjmsTopic
OneandOnlyOne	No	eis/aqjms/EDNxaTopic	jms/fabric/EDNAQjmsTopic
Guaranteed	Yes	eis/aqjms/EDNLocalTxDurableTopic	jms/fabric/EDNAQjmsTopic
Guaranteed	No	eis/aqjms/EDNLocalTxTopic	jms/fabric/EDNAQjmsTopic

Foreign Servers:

EDNAQjmsForeignServer

EDNAQjmsLocalTxForeignServer

Data Sources:

jdbc/EDNDataSource

jdbc/EDNLocalTxDataSource

Actual AQ Topic:

EDN_AQJMS_TOPIC

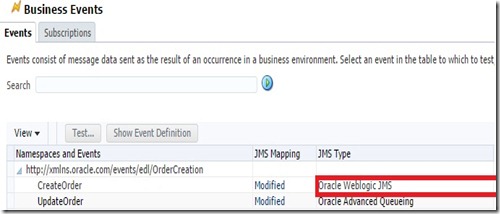

Remember the change of JMS type does not apply to Business Events where JMS mapping is done with a Custom Topic. For example, here Create Order Business Event is using Custom topic so JMS type is retained as Weblogic JMS even after modification in MBean.

With Durable set to Yes

Following is log generated when Durable property is set to Yes for Update Order Business Event. Here, can clearly observe that corresponding Durable Connection factory has been used and the same AQ Topic. Similarly you can try and verify log for Guaranteed consistency level with Durable property Yes/No.

[2014-12-30T22:54:27.420+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ’20’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: a9de2c34-beec-4e15-93d1-cee78dc3dc4e-000002c4,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 60003] [oracle.soa.tracking.InstanceId: 60007] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KeSEZAD3z0WjLxyGOA1Kcgt9000004] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/aqjms/EDNxaDurableTopic EdnBus12c file://wsdl/eis/aqjms/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/aqjms/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Starting JCA LocalTransaction
[2014-12-30T22:54:27.421+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ’20’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: a9de2c34-beec-4e15-93d1-cee78dc3dc4e-000002c4,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 60003] [oracle.soa.tracking.InstanceId: 60007] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KeSEZAD3z0WjLxyGOA1Kcgt9000004] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/aqjms/EDNxaDurableTopic EdnBus12c file://wsdl/eis/aqjms/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/aqjms/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Invoking JCA Outbound Interaction
[2014-12-30T22:54:27.628+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.adapter.jms.outbound] [tid: [ACTIVE].ExecuteThread: ’20’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: a9de2c34-beec-4e15-93d1-cee78dc3dc4e-000002c4,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 60003] [oracle.soa.tracking.InstanceId: 60007] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KeSEZAD3z0WjLxyGOA1Kcgt9000004] JMSMessageProducer_produce: Successfully produced message with ID ID:B76D31728D484942A2DD718BD928F646 to destination jms/fabric/EDNAQjmsTopic
[2014-12-30T22:54:27.628+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ’20’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: a9de2c34-beec-4e15-93d1-cee78dc3dc4e-000002c4,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 60003] [oracle.soa.tracking.InstanceId: 60007] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KeSEZAD3z0WjLxyGOA1Kcgt9000004] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/aqjms/EDNxaDurableTopic EdnBus12c file://wsdl/eis/aqjms/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/aqjms/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Committing JCA LocalTransaction

SOA 12c – EDN – Mapping to Custom Topic with Weblogic JMS

Published December 26, 2014 EDN 3 Comments
Tags: 12c, EDN, SOA, WLSJMS

EDN documentation says:

You can create additional JMS topics (Oracle WebLogic Server JMS or AQ JMS) and map different event types to these additional JMS topics in Oracle Enterprise Manager Fusion Middleware Control.

In this post, we will see how to do this mapping of Business Event to Custom Topic.

This involves 2 steps:

Create a new Topic.
Modify the business event mapping in EM.

Creating a new Topic

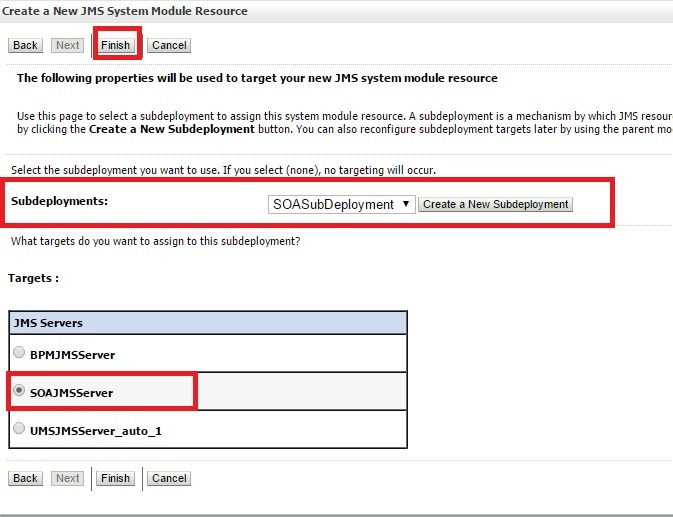

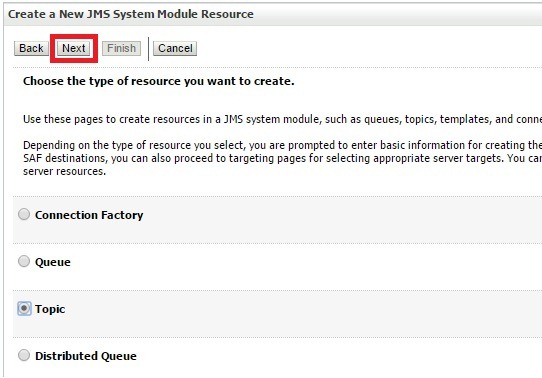

Navigate to Services –> Messaging –> JMS Modules –> SoaJMSModule in Weblogic Administration console.

Modifying Business Event mapping

Navigate to SOA –> soa-infra –> SOA Infrastructure –> Business Events in EM and click JMS Mapping as shown below.

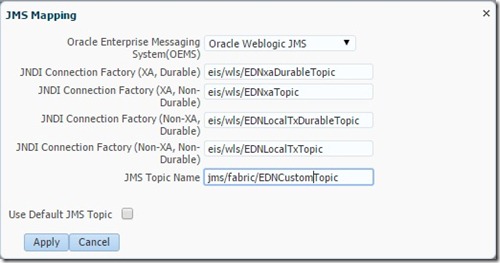

Modify JMS Topic Name with the custom topic created earlier. Typically, you don’t have to create new Connection Factories so retain them.

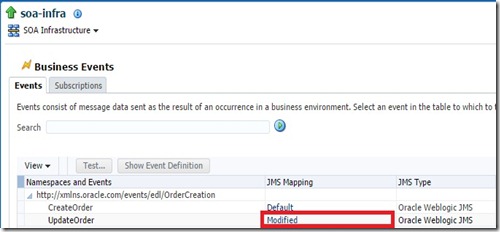

Click Apply and observe that JMS Mapping is shown as Modified.

[2014-12-25T15:03:03.752+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ‘9’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 364f79e6-6c77-415c-98e1-bb2219593f84-000005b4,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 20004] [oracle.soa.tracking.InstanceId: 20012] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000Ke0mhDn3z0WjLxyGOA1Kax2t000004] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/wls/EDNxaTopic EdnBus12c file://wsdl/eis/wls/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/wls/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Starting JCA LocalTransaction
[2014-12-25T15:03:03.753+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ‘9’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 364f79e6-6c77-415c-98e1-bb2219593f84-000005b4,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 20004] [oracle.soa.tracking.InstanceId: 20012] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000Ke0mhDn3z0WjLxyGOA1Kax2t000004] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/wls/EDNxaTopic EdnBus12c file://wsdl/eis/wls/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/wls/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Invoking JCA Outbound Interaction
[2014-12-25T15:03:03.757+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.adapter.jms.outbound] [tid: [ACTIVE].ExecuteThread: ‘9’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 364f79e6-6c77-415c-98e1-bb2219593f84-000005b4,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 20004] [oracle.soa.tracking.InstanceId: 20012] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000Ke0mhDn3z0WjLxyGOA1Kax2t000004] JMSMessageProducer_produce: Successfully produced message with ID ID:<703459.1419499983756.0> to destination jms/fabric/EDNCustomTopic
[2014-12-25T15:03:03.758+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ‘9’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 364f79e6-6c77-415c-98e1-bb2219593f84-000005b4,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 20004] [oracle.soa.tracking.InstanceId: 20012] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000Ke0mhDn3z0WjLxyGOA1Kax2t000004] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/wls/EDNxaTopic EdnBus12c file://wsdl/eis/wls/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/wls/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Committing JCA LocalTransaction
[2014-12-25T15:03:03.760+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: [ACTIVE].ExecuteThread: ‘9’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 364f79e6-6c77-415c-98e1-bb2219593f84-000005b4,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 20004] [oracle.soa.tracking.InstanceId: 20012] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000Ke0mhDn3z0WjLxyGOA1Kax2t000004] Publishing Event= UpdateOrder ns http://xmlns.oracle.com/events/edl/OrderCreation successful

In above log, you can clearly observe that Business Event is published in our topic jms/fabric/EDNCustomTopic and default connection factory is used. You can refer to my previous post on how to generate this EDN log, if required.

Observations

I had to set Quota as shown below to make this work. Initially it was set to None.

Typically, we have to restart the affected composites after modifying the Business Event JMS mapping. And might also require SOA server restart sometimes at least when there are Durable subscribers for that event.
When JMS mapping is modified for event for which Durable Subscribers exist, these are recreated for new topic and older ones are made just inactive.

To revert JMS mapping for a Business Event, just click on Use Default JMS Topic as shown below and you have to restart affected composite, of course.

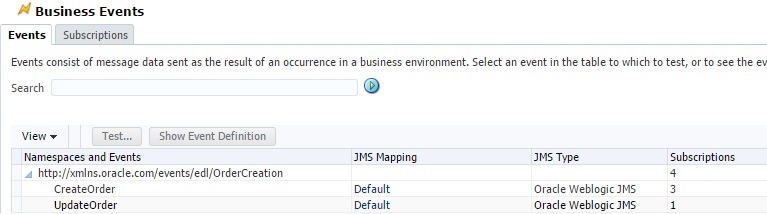

After this, you can also observe that JMS mapping is shown as Default.

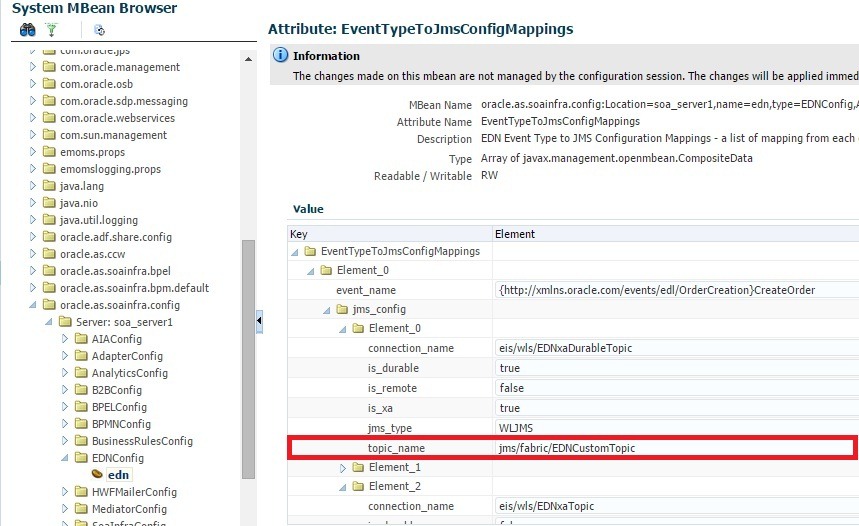

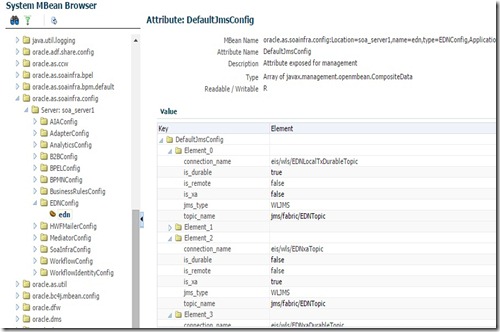

The Default JMS mapping and modified JMS mapping can also be found in MBean browser as shown below. You can navigate to here by selecting <<domain>> –> System MBean Browser –> Application Defined MBeans –> oracle.as.soainfra.config –> EDNConfig –> edn.

SOA 12c – EDN Logging

Published December 22, 2014 EDN 4 Comments
Tags: 12c, EDN, SOA

In 12c EDN uses Weblogic JMS to publish and deliver the Business Events. So edn-db-log (which we use in 11g) will not work when Weblogic JMS is used.

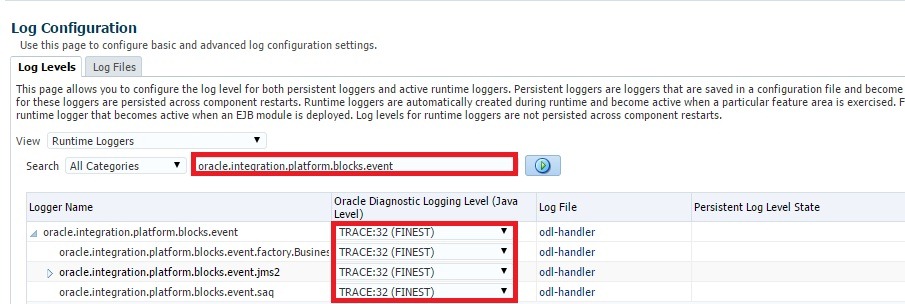

In 12c, you can enable EDN logging navigating to soa-infra –> Logs –> Log Configuration and search for logger oracle.integration.platform.blocks.event as shown below. Set the logging level as you desired.

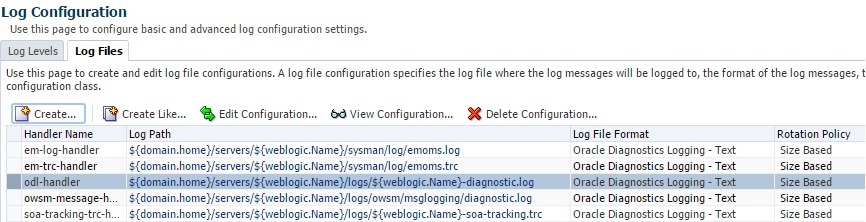

Logs will be created in soa_server1-diagnostic.log as it uses old-handler.

We use following events and subscriptions for verifying the logs. The business event CreateOrder has 3 subscriptions and UpdateOrder has 1 subscription.

Following is the log generated when CreateOrder event is produced having all the subscribers up with OneandOnlyOne subscription and durable property is Yes. The following log contains right from publishing the business event to consumption. The highlighted date represents a new line in the generated log.

[2014-12-19T21:23:28.651+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] MediatorServiceEngine received a request for operation = execute
[2014-12-19T21:23:28.683+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] onEvent from default/EDNConsistencyCheck!1.0*soa_36353699-e716-4b6a-9a2e-b8accf04b9c3/default/EDNConsistencyCheck!1.0*soa_36353699-e716-4b6a-9a2e-b8accf04b9c3/RaiseEvent Event= CreateOrder ns http://xmlns.oracle.com/events/edl/OrderCreation
[2014-12-19T21:23:28.684+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] Event payload :<inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">[[
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
type 1
]]
[2014-12-19T21:23:28.684+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] Composite DN of source: default/EDNConsistencyCheck!1.0*soa_36353699-e716-4b6a-9a2e-b8accf04b9c3
[2014-12-19T21:23:28.684+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] Component Name of source: default/EDNConsistencyCheck!1.0*soa_36353699-e716-4b6a-9a2e-b8accf04b9c3/RaiseEvent
[2014-12-19T21:23:28.685+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnBus12c] [SRC_METHOD: publish] EDN outbound: JMS Config: oracle.soa.management.config.edn.EDNJmsConfig@d94f545 [remote=false, jmsType=WLJMS, durable=true, xa=true, connectionName=eis/wls/EDNxaDurableTopic, topicName=jms/fabric/EDNTopic]
[2014-12-19T21:23:28.687+05:30] [soa_server1] [TRACE:16] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnBus12c] [SRC_METHOD: publishViaJcaInterface] ENTRY
[2014-12-19T21:23:28.688+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/wls/EDNxaDurableTopic EdnBus12c file://wsdl/eis/wls/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/wls/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Starting JCA LocalTransaction
[2014-12-19T21:23:28.689+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/wls/EDNxaDurableTopic EdnBus12c file://wsdl/eis/wls/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/wls/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Invoking JCA Outbound Interaction
[2014-12-19T21:23:28.692+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.adapter.jms.outbound] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] JMSMessageProducer_produce: Successfully produced message with ID ID:<558029.1419004408691.0> to destination jms/fabric/EDNTopic
[2014-12-19T21:23:28.692+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/wls/EDNxaDurableTopic EdnBus12c file://wsdl/eis/wls/EDNxaDurableTopic-OUTBOUND.wsdl [ eis/wls/EDNxaDurableTopic-OUTBOUND::enqueue(part,part) ] – Committing JCA LocalTransaction
[2014-12-19T21:23:28.693+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/wls/EDNxaDurableTopic EdnBus12c Returning adapter response for part
[2014-12-19T21:23:28.693+05:30] [soa_server1] [TRACE:16] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnBus12c] [SRC_METHOD: publishViaJcaInterface] RETURN
[2014-12-19T21:23:28.694+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] Publishing Event= CreateOrder ns http://xmlns.oracle.com/events/edl/OrderCreation successful
[2014-12-19T21:23:28.802+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: DaemonWorkThread: ’14’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001061d,0] [APP: soa-infra] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/wls/EDNxaDurableTopic EdnBus12c shouldProcessMessage: error = false –> true
[2014-12-19T21:23:28.804+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: DaemonWorkThread: ’17’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001063f,0] [APP: soa-infra] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/wls/EDNxaDurableTopic EdnBus12c shouldProcessMessage: error = false –> true
[2014-12-19T21:23:28.804+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnBus12c] [tid: DaemonWorkThread: ’15’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001062c,0] [APP: soa-infra] [SRC_CLASS: oracle.tip.adapter.fw.log.LogManagerImpl] [SRC_METHOD: log] eis/wls/EDNxaDurableTopic EdnBus12c shouldProcessMessage: error = false –> true
[2014-12-19T21:23:28.805+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnEventListener] [tid: DaemonWorkThread: ’14’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001061d,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnEventListener] [SRC_METHOD: post] post() is invoked on oracle.integration.platform.blocks.event.jms2.EdnEventListener@a1214af, thread: Thread[DaemonWorkThread: ’14’ of WorkManager: ‘SOA_EDN_WM’,10,Application Daemon Threads], subject: null, event:[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
[2014-12-19T21:23:28.806+05:30] [soa_server1] [TRACE] [SOA-32014] [oracle.integration.platform.blocks.event.jms2] [tid: DaemonWorkThread: ’14’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001061d,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnBusMessages] [SRC_METHOD: fineDequeuedEvent] Dequeued event, Subject: null :[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
[2014-12-19T21:23:28.806+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnEventListener] [tid: DaemonWorkThread: ’17’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001063f,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnEventListener] [SRC_METHOD: post] post() is invoked on oracle.integration.platform.blocks.event.jms2.EdnEventListener@21bacde3, thread: Thread[DaemonWorkThread: ’17’ of WorkManager: ‘SOA_EDN_WM’,10,Application Daemon Threads], subject: null, event:[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
[2014-12-19T21:23:28.806+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnEventListener] [tid: DaemonWorkThread: ’15’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001062c,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnEventListener] [SRC_METHOD: post] post() is invoked on oracle.integration.platform.blocks.event.jms2.EdnEventListener@20e8b2b2, thread: Thread[DaemonWorkThread: ’15’ of WorkManager: ‘SOA_EDN_WM’,10,Application Daemon Threads], subject: null, event:[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
[2014-12-19T21:23:28.806+05:30] [soa_server1] [WARNING] [DMS-50763] [oracle.dms.instrument] [tid: DaemonWorkThread: ’14’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001061d,0] [APP: soa-infra] Attempt to create pre-existing noun /soainfra/apps/default/EDNConsistencyCheck!1.0/BUSINESSEVENTNAMESPACESs/http^/xmlns.oracle.com/events/edl/OrderCreation/BUSINESSEVENTs/CreateOrder, of type soainfra_business-event-publish, with a conflicting type soainfra_business-event-process.
[2014-12-19T21:23:28.808+05:30] [soa_server1] [TRACE] [SOA-32014] [oracle.integration.platform.blocks.event.jms2] [tid: DaemonWorkThread: ’15’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001062c,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnBusMessages] [SRC_METHOD: fineDequeuedEvent] Dequeued event, Subject: null :[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
[2014-12-19T21:23:28.808+05:30] [soa_server1] [TRACE] [SOA-32014] [oracle.integration.platform.blocks.event.jms2] [tid: DaemonWorkThread: ’17’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001063f,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnBusMessages] [SRC_METHOD: fineDequeuedEvent] Dequeued event, Subject: null :[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
[2014-12-19T21:23:28.809+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnEventListener] [tid: DaemonWorkThread: ’15’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001062c,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnEventListener] [SRC_METHOD: post] About to invoke oracle.tip.mediator.serviceEngine.MediatorServiceEngine@67e794b7 with following event:[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
[2014-12-19T21:23:28.810+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnEventListener] [tid: DaemonWorkThread: ’17’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001063f,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnEventListener] [SRC_METHOD: post] About to invoke oracle.tip.mediator.serviceEngine.MediatorServiceEngine@67e794b7 with following event:[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
[2014-12-19T21:23:28.844+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnEventListener] [tid: DaemonWorkThread: ’14’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-0001061d,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnEventListener] [SRC_METHOD: post] About to invoke oracle.fabric.BPELServiceEngine@6fe5b29e with following event:[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
[2014-12-19T21:23:28.844+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: [ACTIVE].ExecuteThread: ’16’ for queue: ‘weblogic.kernel.Default (self-tuning)’] [userId: <anonymous>] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,0:2] [APP: soa-infra] [J2EE_APP.name: soa-infra] [J2EE_MODULE.name: fabric] [WEBSERVICE.name: RaiseEvent_ep] [WEBSERVICE_PORT.name: execute_pt] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 49] [oracle.soa.tracking.SCAEntityId: 11] [composite_name: EDNConsistencyCheck] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] MediatorServiceEngine returning after processing the request for operation = execute
[2014-12-19T21:23:28.845+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: DaemonWorkThread: ’17’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,1:17775] [APP: soa-infra] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 50] [oracle.soa.tracking.SCAEntityId: 7] [composite_name: EDNSubscribeSync] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] MediatorServiceEngine received an event = {http://xmlns.oracle.com/events/edl/OrderCreation}CreateOrder
[2014-12-19T21:23:28.870+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: DaemonWorkThread: ’15’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,1:17774] [APP: soa-infra] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 51] [oracle.soa.tracking.SCAEntityId: 3] [composite_name: EDNSubscribeAsync] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] MediatorServiceEngine received an event = {http://xmlns.oracle.com/events/edl/OrderCreation}CreateOrder
[2014-12-19T21:23:28.877+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnEventListener] [tid: DaemonWorkThread: ’14’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-00010752,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnEventListener] [SRC_METHOD: post] EDN finished delivery of event:[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
[2014-12-19T21:23:30.571+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: DaemonWorkThread: ’17’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,1:17775] [APP: soa-infra] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 50] [oracle.soa.tracking.SCAEntityId: 7] [composite_name: EDNSubscribeSync] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] MediatorServiceEngine returning after processing the event = {http://xmlns.oracle.com/events/edl/OrderCreation}CreateOrder
[2014-12-19T21:23:30.572+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: DaemonWorkThread: ’17’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,1:17775] [APP: soa-infra] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 50] [oracle.soa.tracking.SCAEntityId: 7] [composite_name: EDNSubscribeSync!1.0] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] MediatorServiceEngine returning after processing the event = {http://xmlns.oracle.com/events/edl/OrderCreation}:CreateOrder[[

]]
[2014-12-19T21:23:30.572+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnEventListener] [tid: DaemonWorkThread: ’17’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-00010756,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnEventListener] [SRC_METHOD: post] EDN finished delivery of event:[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
[2014-12-19T21:23:30.675+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: DaemonWorkThread: ’15’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,1:17774] [APP: soa-infra] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 51] [oracle.soa.tracking.SCAEntityId: 3] [composite_name: EDNSubscribeAsync] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] MediatorServiceEngine returning after processing the event = {http://xmlns.oracle.com/events/edl/OrderCreation}CreateOrder
[2014-12-19T21:23:30.675+05:30] [soa_server1] [NOTIFICATION] [] [oracle.soa.mediator.serviceEngine] [tid: DaemonWorkThread: ’15’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: 7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c,1:17774] [APP: soa-infra] [oracle.soa.tracking.FlowId: 9] [oracle.soa.tracking.InstanceId: 51] [oracle.soa.tracking.SCAEntityId: 3] [composite_name: EDNSubscribeAsync!1.0] [FlowId: 0000KdZGFD03z0WjLxyGOA1K^6wo00000N] MediatorServiceEngine returning after processing the event = {http://xmlns.oracle.com/events/edl/OrderCreation}:CreateOrder[[

]]
[2014-12-19T21:23:30.676+05:30] [soa_server1] [TRACE] [] [oracle.integration.platform.blocks.event.jms2.EdnEventListener] [tid: DaemonWorkThread: ’15’ of WorkManager: ‘SOA_EDN_WM’] [userId: weblogic] [ecid: f0d1ad91-cab2-484f-94e2-834724cc0eaa-00010758,0] [APP: soa-infra] [SRC_CLASS: oracle.integration.platform.blocks.event.jms2.EdnEventListener] [SRC_METHOD: post] EDN finished delivery of event:[[
<business-event xmlns:ns="http://xmlns.oracle.com/events/edl/OrderCreation" xmlns="http://oracle.com/fabric/businessEvent">
   <name>ns:CreateOrder</name>
   <id>2ca5c3b5-8797-11e4-aa9e-0800270088b6</id>
   <priority>4</priority>
   <tracking>
      <ecid>7bd5dbff-2042-456b-aa50-4c833203de1b-0000149c</ecid>
      <componentInstanceId>22</componentInstanceId>
      <parentComponentInstanceId>mediator:49</parentComponentInstanceId>
      <flowEventId>133</flowEventId>
      <flowId>9</flowId>
      <flowCreatedTime>2014-12-19T21:23:28.640+0530</flowCreatedTime>
      <componentInstanceId>49</componentInstanceId>
      <scaEntityId>11</scaEntityId>
      <flowSCAPartitionId>1</flowSCAPartitionId>
      <correlationFlowID>0000KdZGFD03z0WjLxyGOA1K^6wo00000N</correlationFlowID>
      <compositeSCAEntityID>10</compositeSCAEntityID>
      <instanceIDCreationTime>1419004408647</instanceIDCreationTime>
   </tracking>
   <content>
      <inp1:OrderInput xmlns:oracle-xsl-mapper="http://www.oracle.com/xsl/mapper/schemas" xmlns:inp1="http://xmlns.oracle.com/BlogWS/EDNConsistencyCheck/">
   <inp1:OrderId>77766555555</inp1:OrderId>
</inp1:OrderInput>
   </content>
</business-event>

]]
From the above logs, we can observe Enqueue of event, Starting and committing JCA Local transaction, Dequeue of event, Invoking composite, Finished delivery (showed thrice as business event has 3 subscribers). You can also observe that eis/wls/EDNxaDurableTopic connection pool is used and message is enqueued in jms/fabric/EDNTopic.

Similar logs will be generated even when Durable property is set to No and for Guaranteed subscription level too using the respective connection pool.

To Share:
Click to email a link to a friend (Opens in new window)
Click to share on Facebook (Opens in new window)
Click to share on Twitter (Opens in new window)
Like this:
Like Loading...

Pages

About Me

RSS - Posts

BlogRoll

IBM Developer Works

OTN

Categories

ADF

BPEL

BPM

Docker

EDN

ESS

MAF

Maven

MDS

OSB

SOA

SOAPUI

VM

Archives

March 2018 (3)

November 2017 (4)

August 2017 (1)

July 2017 (3)

June 2017 (1)

May 2017 (1)

October 2016 (1)

July 2016 (2)

June 2016 (3)

May 2016 (1)

April 2016 (1)

January 2016 (2)

December 2015 (2)

November 2015 (3)

September 2015 (4)

August 2015 (1)

June 2015 (5)

May 2015 (3)

March 2015 (4)

February 2015 (4)

January 2015 (3)

December 2014 (3)

November 2014 (3)

October 2014 (15)

September 2014 (1)

July 2014 (3)

June 2014 (1)

April 2014 (1)

August 2013 (2)

July 2013 (2)

June 2013 (2)

May 2013 (3)

April 2013 (2)

March 2013 (4)

February 2013 (1)

January 2013 (1)

August 2012 (1)

June 2012 (1)

March 2012 (1)

January 2012 (1)

November 2011 (1)

October 2011 (3)

September 2011 (2)

August 2011 (4)

July 2011 (5)

June 2011 (5)

May 2011 (8)

March 2011 (6)

February 2011 (1)

January 2011 (1)

Subscribe!!!

Enter your email address to subscribe to this blog and receive notifications of new posts by email.

Email Address:

Join 379 other subscribers

Follow Blog via Email

Enter your email address to follow this blog and receive notifications of new posts by email.

Email Address:
